Maytech rc 800 storm Racing Drone frame with ESC Motor propeller

FOB Reference Price:Get Latest Price
US $500.9-2,000.9 / Pieces | 1 Piece/Pieces Maytech rc 800 storm Racing Drone frame with ESC Motor propelle (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Style:
Radio Control Toy
Type:
drone frame
Power:
Battery
Material:
Aluminum Alloy
Scale:
for multicopter
Radio Control Style:
RC Hobby
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
Maytech
Model Number:
MTF800-QP2 Maytech rc 800 storm Racing Drone frame
Brand:
Maytech
Product name:
Maytech rc 800 storm Racing Drone frame with ESC Motor propeller
Motor:
MTO2830
Size:
255mm(L)x230mm(W)x60mm(H)
Net Weight:
4-10KGS
Supply Ability
Supply Ability:
10000 Piece/Pieces per Week Maytech rc 800 storm Racing Drone frame with ESC Motor propelle
Packaging & Delivery
Packaging Details
Maytech Plastic Bag
HS Code :8504409990 for Maytech rc 800 storm Racing Drone frame with ESC Motor propeller
Port
Shanghai
Lead Time :
Fastest Delivery time 1 day ; Mass production 7-10 days
Product Description

Maytech rc 800 storm Racing Drone frame  with ESC Motor propeller
Description

Price include frame, ESC, Motor, propeller, not include battery, flight
controller, etc.
Diagonal wheelbase:800mm
Center frame dimension: 255mm(L)x230mm(W)x60mm(H)
Center frame weight(including landing gear and bracket): 950g
Landing gear size: 310mm(L)*430mm (BottomWidth)*320mm(H)
Top Width: 260 mm
Take-off weight 4Kg-10Kg
Frame weight(including motors, ESCs, propellers):3.4Kg
Lipo Battery: 6S 10000mAh-20000mAh,minimum 15C
MaximumWatt 3000W
Hovering Watt 1500W @ 7Kg
Hovering time 20min 15000mAh @ 7Kg
Recommended flight parameters: A2 flight control:
Basic Gain: Roll 110%, Pitch 110%, Direction 120%
Attitude Gain: Roll 220%, Pitch 220%, Vertical 120%
WooKong-M flight control:
Basic Gain: Roll 160%, Pitch 160%, Direction 160%
Attitude Gain: Roll 190%, Pitch 190%, Vertical 100%
Motor: MTO4636-400-MK *4pcs
The max installing motor size: 65mm diameter
ESC: 40A ESC*4pcs
Propeller: Maytech 15x5.5inch carbon prop*2 pair
The max propeller size: 19inch

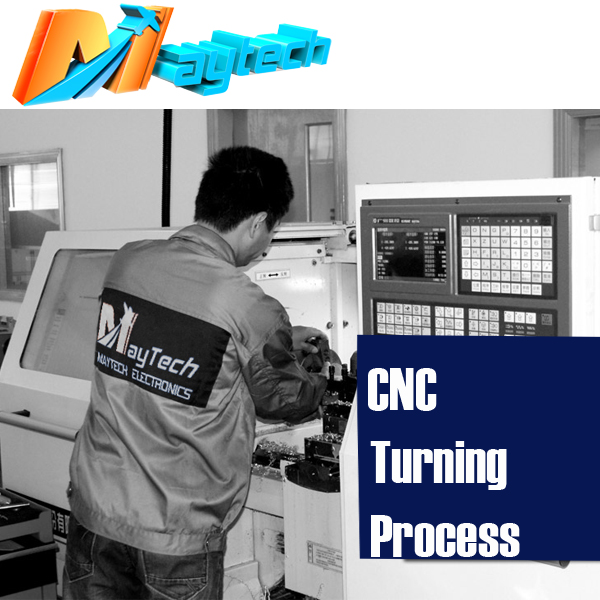

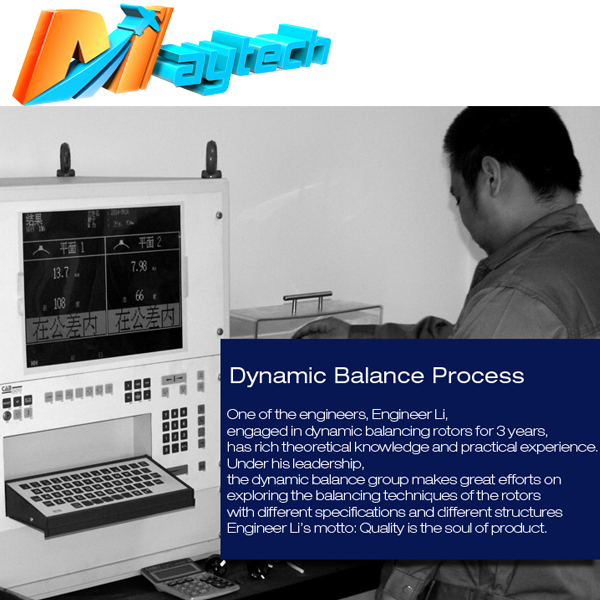

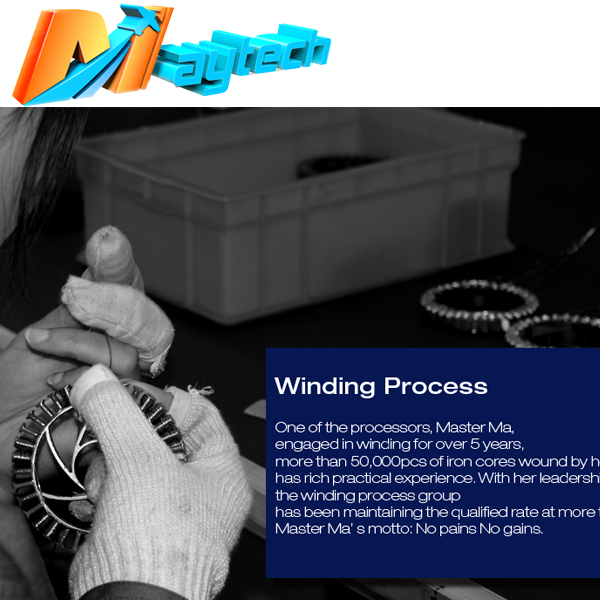

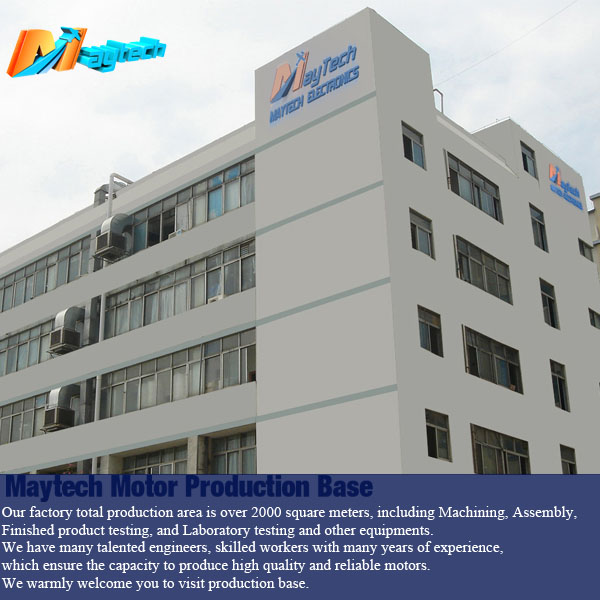

Our Factory



  1.



Packaging & Shipping









Our Services


Company Information



Company information CE .jpg
FAQ


Maytech Electronics Co., Ltd. is devoted in designing and manufacturing Brushless ESCs, Brushless motors, Propellers, Analog and Digital Servos for RC models, such as RC aircrafts, Helicopters, Boats, Cars and Truggies.



Special design requirement, OEM and ODM orders welcome!
