Maytech sensored 6374 motor 6374 dc motor for electric skateboard

FOB Reference Price:Get Latest Price
US $60-110 / Units | 1 Unit/Units Maytech sensored 6374 motor dc motor for electric skateboard (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Use:
Maytech sensored 6374 motor 6374 dc motor for electric skateboard
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
Maytech
Model Number:
MTO6374-190-HA sensored 6374 motor dc motor for electric skateboard
Product name:
Maytech sensored 6374 motor 6374 dc motor for electric skateboard
Brand:
Maytech
Application:
for electric skateboard electric longboard electric bike
KV:
190
Size:
63X74mm
Shaft:
8mm with 3mm keyway
Material:
Metal
Weight:
668g
Company:
Manufacture
Certificate:
CE ROHS
Supply Ability
Supply Ability:
10000 Unit/Units per Month Maytech sensored 6374 motor dc motor for electric skateboard
Packaging & Delivery
Packaging Details
Packing of Maytech sensored 6374 motor 6374 dc motor for electric skateboard
Maytech Plastic Bag +Box
Port
Shanghai
Lead Time :
Shipped in 4 days after payment
Video Description
Product Description

Maytech sensored 6374 motor 6374 dc motor for electric skateboard



KV

190

Size

63X74mm

Shaft

8mm with keyway

Max Current

65A

Max Power

3550W

Weight

668g

Max Lipo Cell

2-12lipos

Max. Pull

13000g



Please do not hesitate to contact us if have any question or doubt.

This motor can be used for electric skateboard , electric longboard , electric mountainboard, electric bike, electric bicycle, robots, fighting robot, other electric machines, etc..

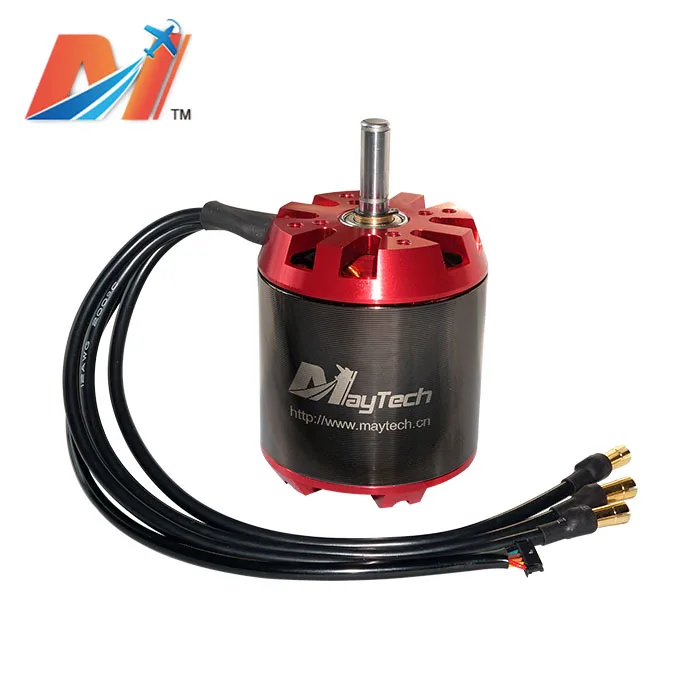

Picture for Maytech sensored 6374 motor 6374 dc motor for electric skateboard:






Recommend Remote Controller for electric skateboard:
Include 1pcs remote control+1pcs receiver 2.4GHz+ 1pcs USB charging cable
Model NOMTSKR1712
PowerBattery
Coverblack
Applicationfor Skateboard
AccessoryWith USB charging cable
CertificateCE ROHS
MaterialsPlastic
Functiontwo (low/high) speed modes
Featuresmall & light

Application

e-skateboard/E-bike
BEC5V BEC
Lipo3-12Cells
Voltage8V-60V
Hardware version 4.12
Firmware version3.30
Capacitors3pcs 680uf 63V
Dimension of VESC board60x40mm
Power wireSilicon wire
BrandMaytech

•Strong, Reliable and Progressive Electric Brakes
•Start from a stop with Unsensored Motors as if it was Sensored
•Many Safety Features such as Current Control and Temperature Control Features
•Sensored and Unsensored (FOC) Field Oriented Control allows your electric skateboard to run with barely any motor noise.
•Built in 5V BEC

•Voltage: 8V to 60V (Up to 3S to 12S LiPo Voltage)
•Current: Up to 240A for a few seconds or 50A continous
•Regenerative Braking
•Sensored or Sensorless operation
•Great start-up torque with sensorless motors
