Maytech skateboard accessories mini hub motor 70mm 100kv 10S for electric skateboard

FOB Reference Price:Get Latest Price
$30.00 - $80.00 / Piece | 1 Piece/Pieces skateboard accessories mini hub motor electric (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
Maytech
Model Number:
MTO7052HBM-60-HA skateboard accessories mini hub motor electric
Use:
Vehicles & Remote Control Toys
Product name:
Maytech skateboard accessories mini hub motor electric
Motor w/wheel dimension:
70x52mm
Brand:
Maytech
Application:
For electric skateboard / longboard / e-bike
Hole size:
8mm
Sensor:
with hall sensor
KV:
100
Company:
Manufacture
Certificate:
CE ROHS
Feature:
Dustproof
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month skateboard accessories mini hub motor electric
Packaging & Delivery
Packaging Details
Plastic Bag +Box for skateboard accessories mini hub motor electric
HS CODE: 8537101190
Port
Shanghai, China
Lead Time :
4 days after payment
Video Description
Product Description

Specification of Maytech eskateboard accessories mini hub motor electric

KV

60

Motor w/wheel dimension

70x52mm

Hole size

8mm

Idle Current

0.5A

Max. Current

22A

Max. Current

24V-36V

Max. Output Watt

450W

RPM2160
Motor Weight500g
Internal Resistance0.557-0.577



Here are more parts for electric skateoards.

The VESC speed controller, remote controller, brushless motors, hub motors, trucks, wheels, pulleys, and bearings are available.

MAYTECH  ELECTRONICS (SHANGHAI ) CO.,  LTD.
 Email: yina @ maytech.cn   Web: www.maytech.cn
Maytech Remote Control System for e-Skateboard
Model No.Specs
MTSKR1512Include 1pcs remote control+
1pcs receiver 2.4GHz+ 1pcs silicon protector+1pcs USB cable
Maytech VESC specialized for e-Skateboard
Model No.Specs
MTVESC50ACompatible with sensor or sensorless motor
Cont. Current: 50A
Burst Current:240A
BEC: 5V/1.5A
 Lipo: 3-12S
PCB Size: 40mm x 60mm
Sensored or Sensorless operation
Great start-up torque with sensorless motors
Use High quality original components according to Official BOM
MTSKC230Cable to connect two VESC via CANBUS for dual motors
Cable length: 230mm
4PIN 2mm pitch male to male connector
Maytech Speed Controller with Hall Sensor for e-Skateboard
Model No.Specs
MTES120A-SBECParameters can be LCD or PC programmable
Continuous Amp: 120A
Burst Amp: 1250A 10S
Input Voltage: 3-12S Lipo
SBEC: 5-12V/5-8A adjustable
Motor supported: sensor & sensorless brushless motor
Size: 63(L)*41(H)*42mm(W)
Weight: 175g
MTES-USBUSB programmer for MTES120A ESC
Maytech closed cover HALL SENSOR Motor for e-skateboard
All motor KV can be customized to your requirement, for KV 50 or below, extra 5USD need be added
Model No.Specs
MTO5065-170-HA-C
With Hall Sensor
KV: 170
Idle Current: 1.2A
Max. Current: 50A
Input Volt.: 2-10s Lipo
Max. Output Watt:1815W
Max. Pull: 6700g
Rated Current: 42.5A
Motor Weight: 445g
Shaft: 8mm
Internal Resistance: 0.0361
With black closed cover
Price does not include accessory
MTO6355-170-HA-C
With Hall Sensor
KV: 170
Idle Current: 1.0A
Max. Current: 65A
Input Volt.: 2-12s Lipo
Max. Output Watt: 3510W
Max. Pull: 12000g
Rated Current: 55A
Motor Weight: 610g
Shaft: 8mm
Internal Resistance: 0.0441
With black closed cover
Price does not include accessory
MTO6365-170-HA-C
With Hall Sensor
KV: 170
Idle Current: 0.8A
Max. Current: 65A
Input Volt.: 2-12s Lipo
Max. Output Watt: 2000W
Max. Pull: 9700g
Rated Current: 60A
Motor Weight: 765g
Shaft: 8mm
Internal Resistance: 0.0402
With black closed cover
Price does not include accessory
MTO6374-170-HA-C
With Hall Sensor
KV: 170
Idle Current: 0.8A
Max. Current: 65A
Input Volt.: 2-12s Lipo
Max. Output Watt: 3550W
Max. Pull: 13000g
Rated Current: 60A
Motor Weight: 835g
Shaft: 8mm
Internal Resistance: 0.0402
With black closed cover
Price does not include accessory
Maytech Pully System for e-Skateboard
Model No.Specs
MTSKP16121x17mm wide nylon wheel pulley
1x17mm wide steel wheel pulley
1x15mm wide belt
Without Ball Bearing NSK f608zz
MTSKT1613BSkateboard Truck  (Backside)
Frame materials: 356-T6 alloy aluminum alloy
Suitable for 9-10inch decks
weight: 465g/pcs
MTKT1613FSkateboard Truck  (Front Side)
Frame materials: 356-T6 alloy aluminum alloy
Suitable for 9-10inch decks
weight: 465g/pcs
MTSKW8352Skateboard Wheels
Dimension: 83x52mm
Hardness: 78A
Wheel Materials: 85% rebound PU wheels ensure the best trafficability and shock absorption.
Cental Part: PP materials
Optional color: Blue, white, green red
Without ball bearing




Packaging & Shipping

 Motor Packaging.jpg




Our Services

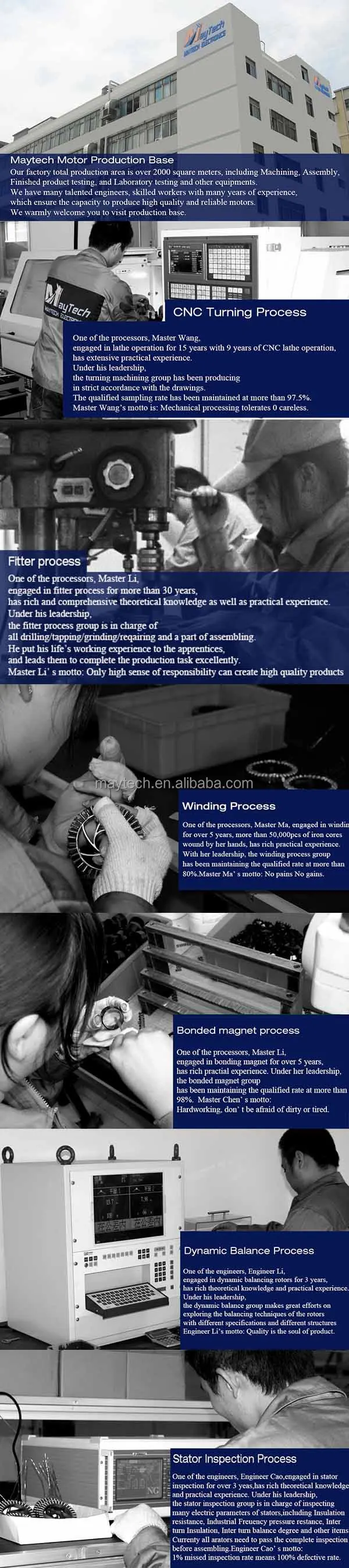

Company Information

 Company information CE .jpg



FAQ
